Double Girder Overhead Crane

Double Girder Overhead Crane

European Standard Double Girder Overhead Crane have features of design concepts, small dimension,  light dead weight, Compared with traditional cranes, the limiting distance is minimum from hook to wall,  and  headroom is the lowest, which makes cranes  work more close to the front, and lifting height more higher that increases effective working space of  workplace.

New workshops can be designed more smaller and  have more functions because the dead weight is light, and the wheel pressure is small. Smaller size  workplace means saving a huge amount of money  from initial construction investment, long-term  heating, air conditioning and other maintenance free.

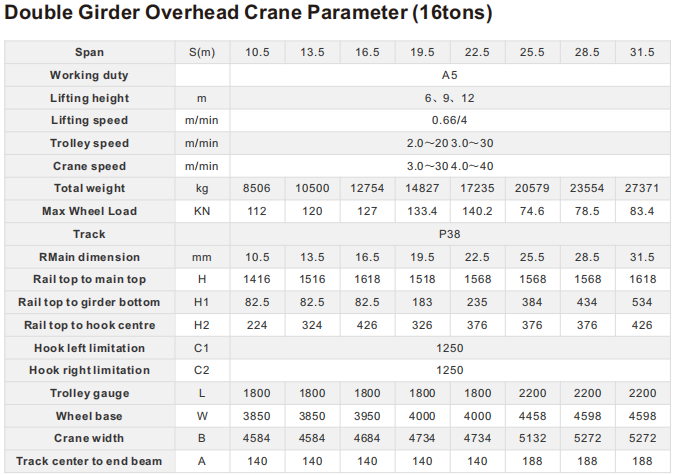

Design standard: FEM, DIN                                                                                            Lifting capacity: 1.6t-100t

Span: ≥6m                                                                                                                        Working class: A5, A6

Ambient temperature: -20-40℃

Advantage: The best design with best configuration, such as: Schneider, ABM, SEW, French Steel Rope  and so on. It is very popular with competitive offering.

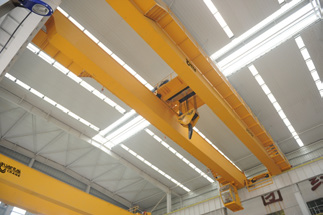

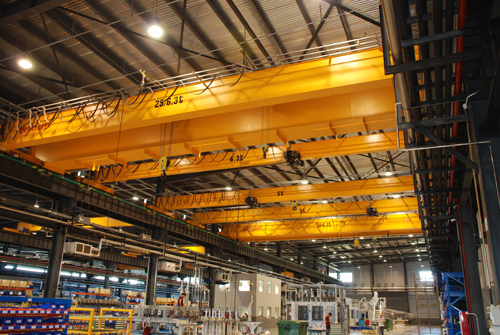

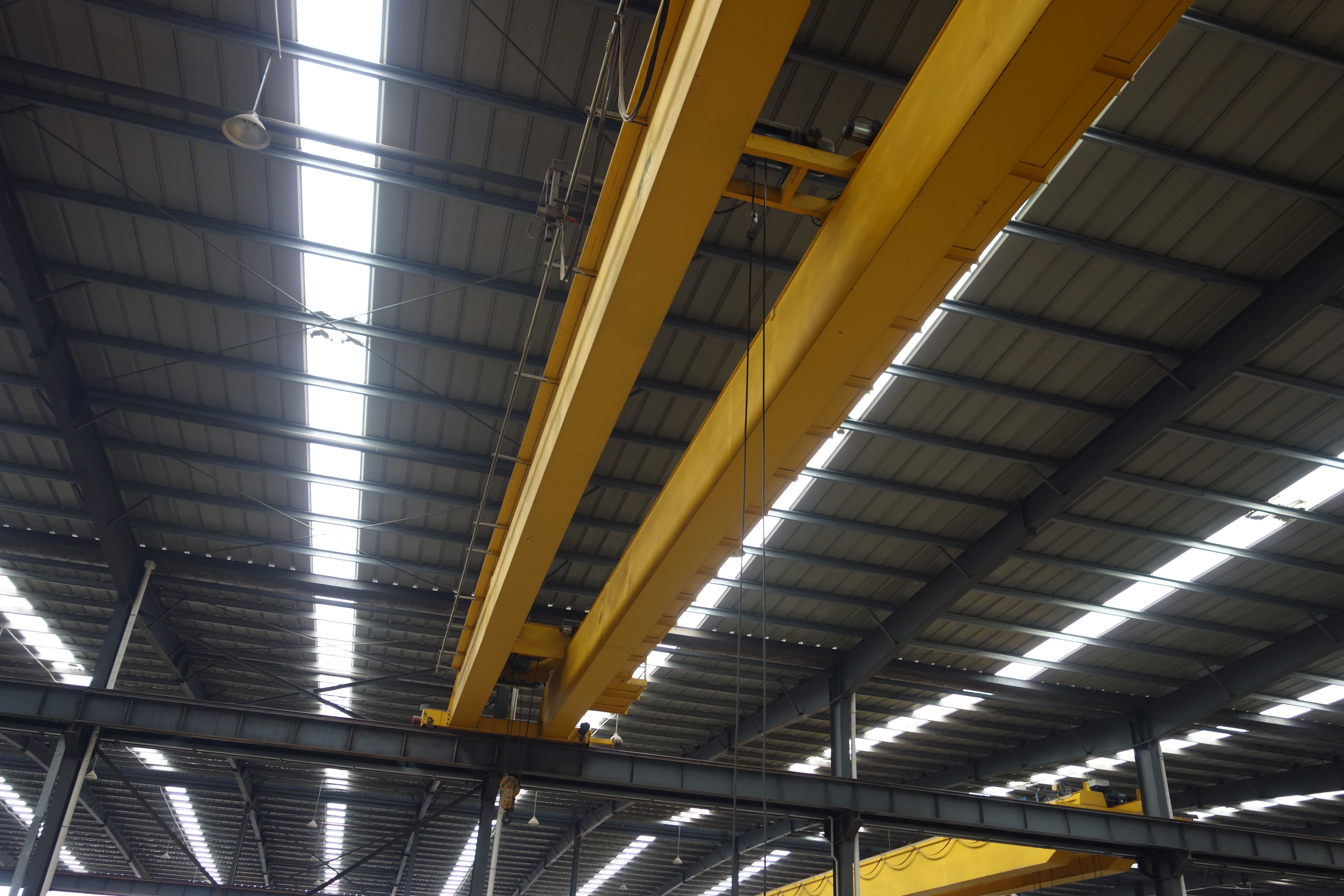

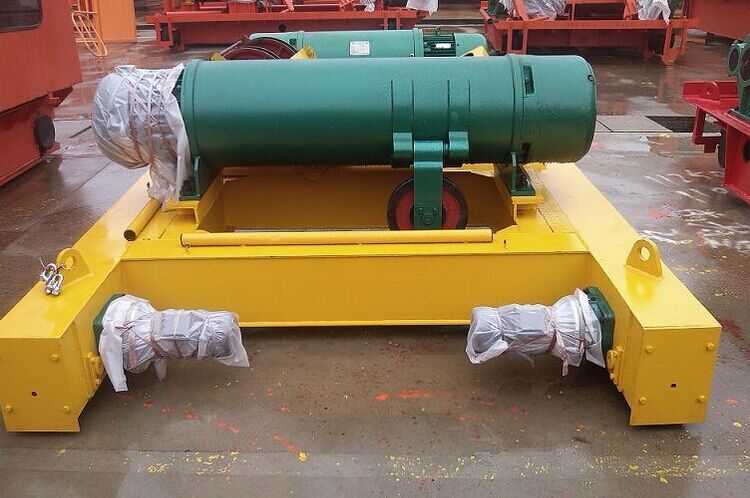

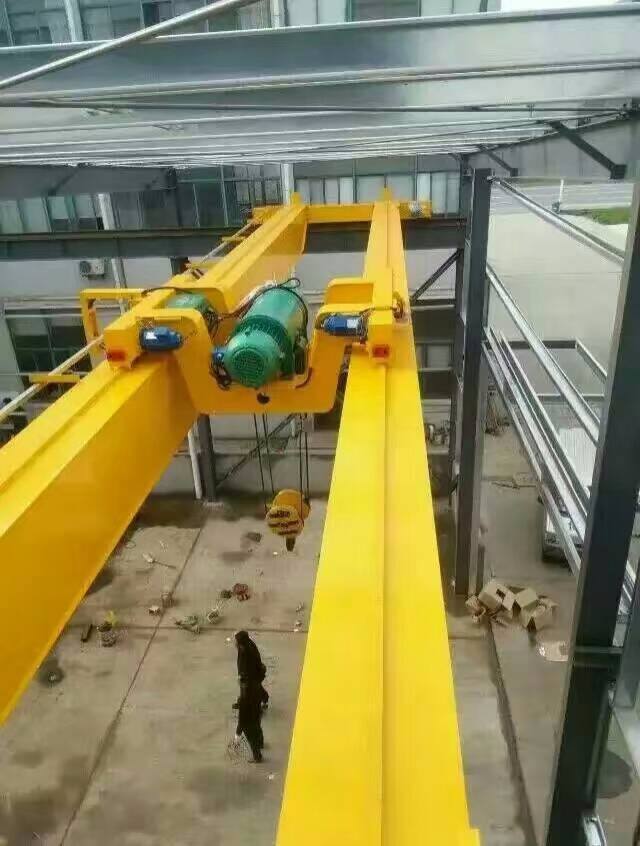

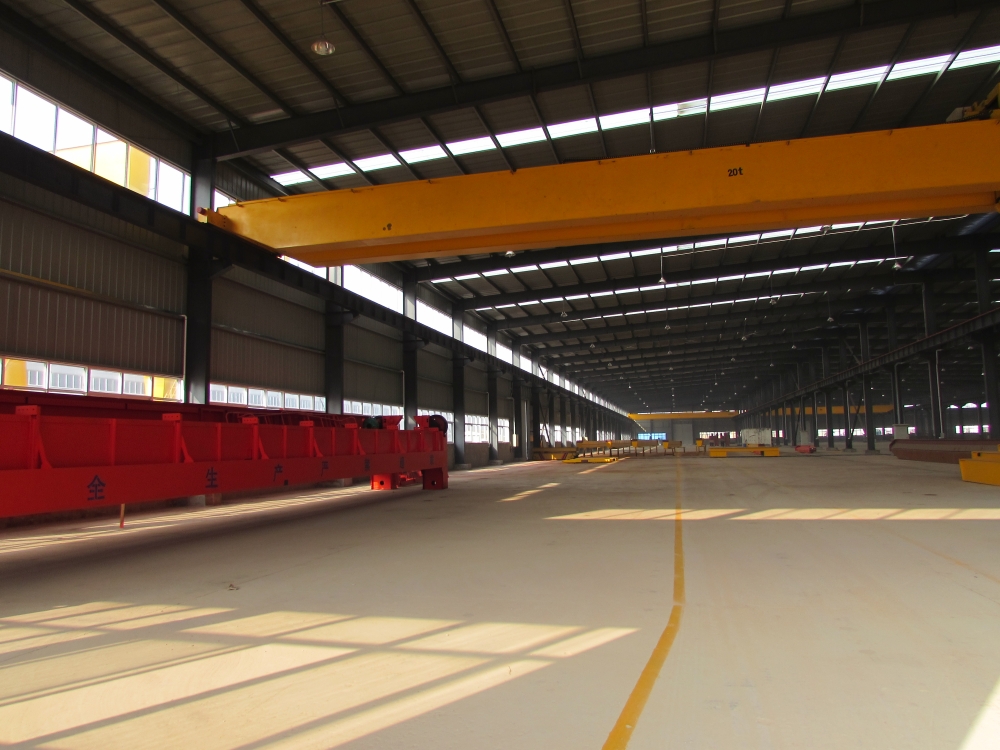

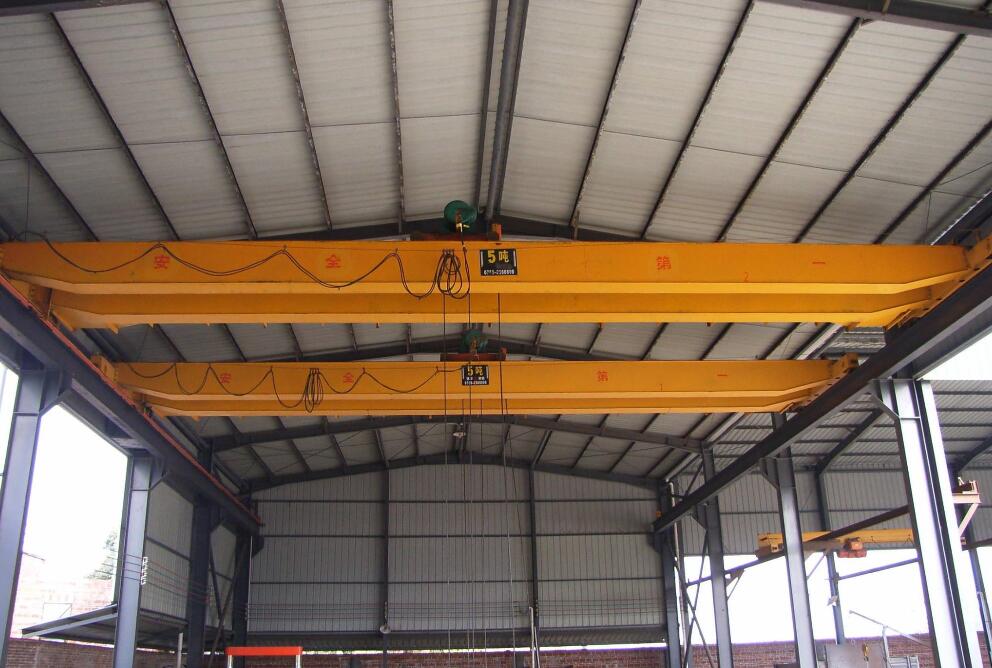

More pictures for reference:
